Spectra DG613 Pipe Laser

Automatic Grade laser for Pipe Laying

Product Condition: New

£3,000.00

Send to a friend

Product Description

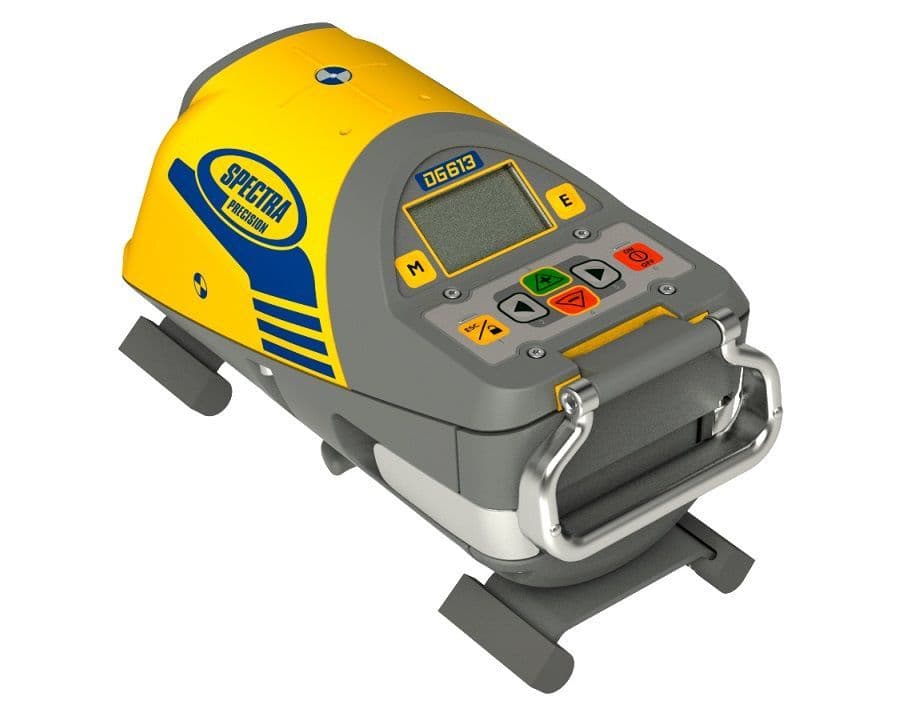

Spectra DG613 Pipe Laser

The Spectra DG613 Pipe Laser is used to precisely set drain pipes of all sizes to the correct line and gradient.

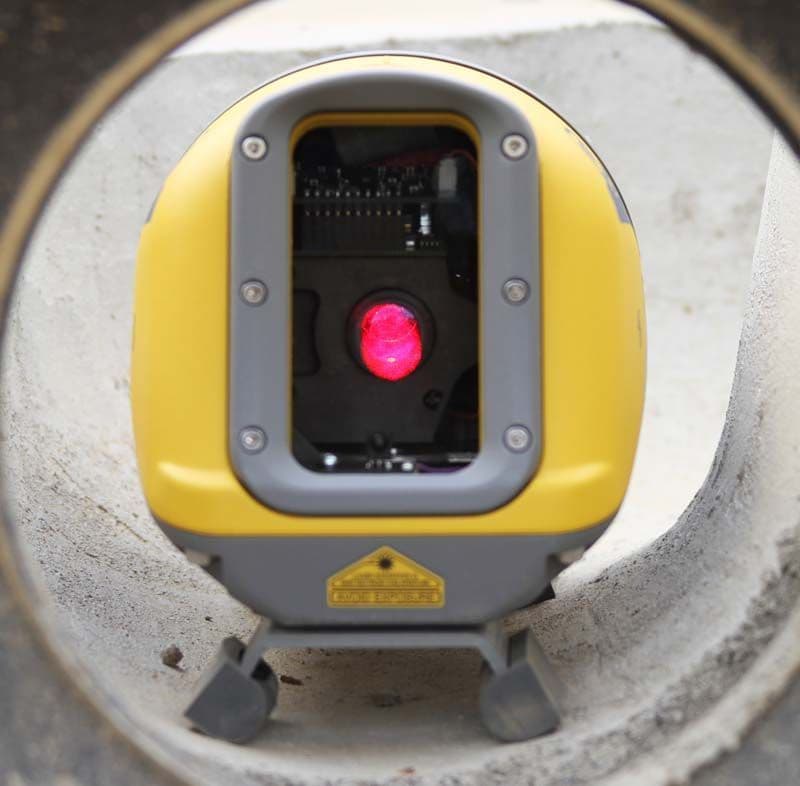

The required grade is entered as a percentage via the keypad or remote control, and the laser will set itself to that grade. A left or right `line control` adjustment, either via the pipe laser keypad or the remote control, sets the laser in the correct alignment down the trench. The pipe can then be laid to line and grade by following the laser. The may be aimed along the inside of the pipe, or over the top, depending on the site requirements.

Spectra pipe lasers are known to be the toughest and most accurate in the industry.
They are designed to withstand the harsh conditions of the construction site and are easy to clean.
The Spectra DG613 is fully waterproof and submersible to 3m.
The Spectra DG613 Pipe Laser is supplied with:

Sturdy Carrying Case
Rechargable NiMH Battery Pack
Mains Chgarger

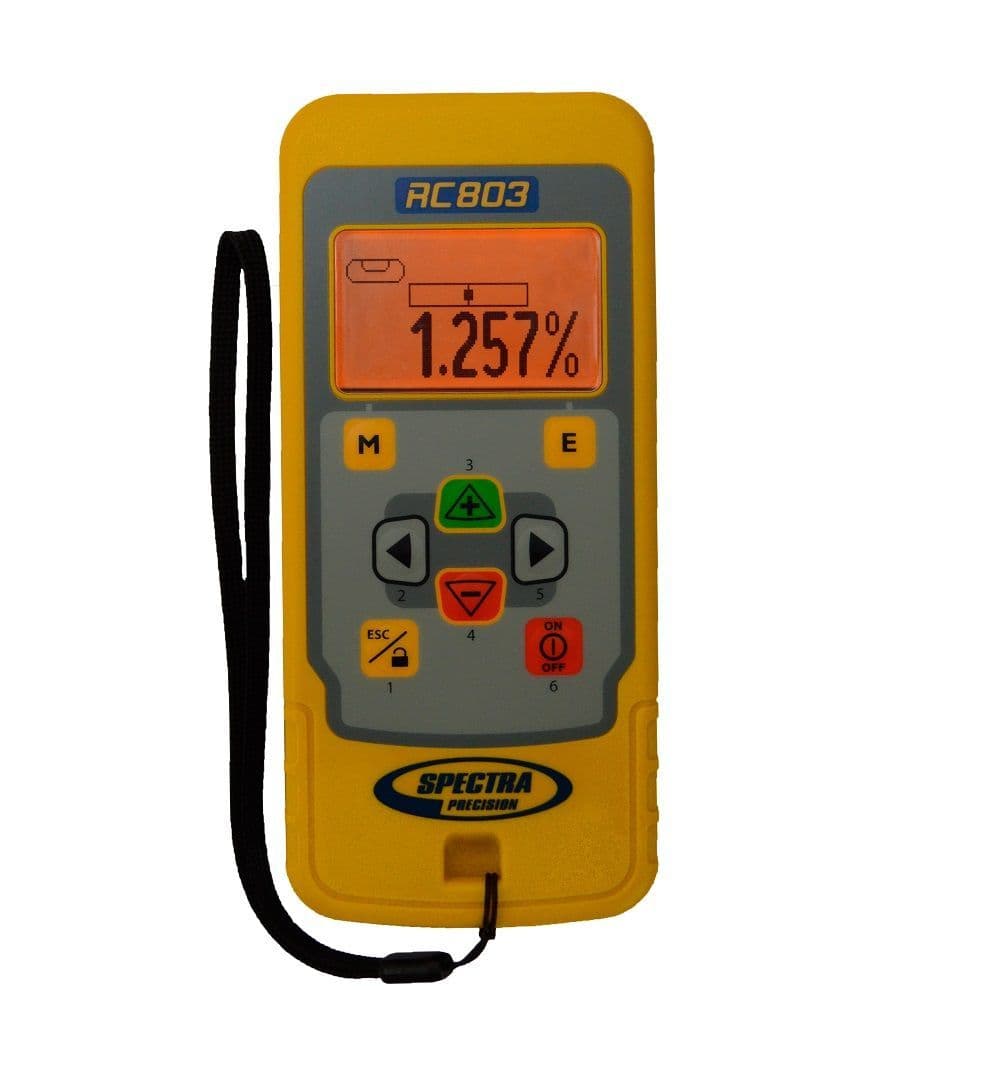

Remote Control
Pipe Laying Target

Specification DG613 Pipe Laser
Beam Range: 150m
Accuracy: +/- 1.5mm per 30m
Grade Range: -12% to + 40%
Line Range (Left to Right): 20 degrees
Grade Zero and Quick Grade: Yes
Laser Output: 4.5 to 5mW (Max allowed for eye safety)
Battery: Rechargeable NiMH 10,000mAh Capacity
Run Time: 40 hours
Operating Temperature: -20° to 60°C
Water Resistance: Submersible to 3 metres
Wireless Remote Range: 150m
Warranty: 5 years
